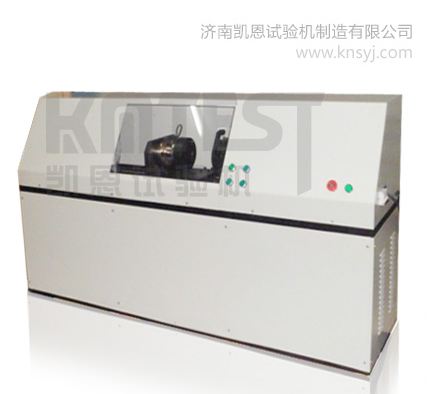

1000Nm/2000/5000 the torsion rig controlled by computer
一、扭转试验台简介
一、The simple introduce about torsion rig
该试验台主要用于扭转原材料、半成品零部件、成品零部件的检测。被测试试样安装在可调整空间的夹具之间，可适应不同的被测试试样扭转力学性能的试验。试验台采用计算机控制操作，可进行扭矩、峰值、角度、曲线等数据的采集；显示器显示被测试零件的扭矩-时间，扭角-时间，扭矩-扭角和扭矩-转角试验曲线；可以实现试验数据存储、考取、打印试验报表等。
The rig is mainly used for detecting the material of torsion, the parts of half-finished and finished products. The detected samples are installed between the fixtures which can adjust the test of torsion behavior of all kinds of detecting samples. The rig can collect data about torque, peak, angle and curve, which is operated by computer controlling. The screen displays the testing curve about detecting parts on torque-time, torque-tensional angle, torque- tensional angle. And it also can realize the testing data of preservation and the printing of testing chart.
二、主要技术参数:
The technological parameters:
1、样式： 卧式
Pattern: horizontal
2、最大试验力： 1000Nm/2000/5000Nm/100000Nm
Maximum force: 100 Nm/200Nm/500Nm
3、试验力分辨率： 0.1Nm
The resolution of testing force: 0.01Nm
4、精确测量范围: 1%FS-100%FS；
The range of accurate measurement: 1%FS-100%FS
5、试验力精度； 优于±1%
Better than ±1%
6、角度分辨率： 0.01°
The resolution of angle:0.01°
7、角度测量精度： 优于±1%
Better than ±1%
9、试验行程： 600mm
The testing stroke: 600mm
10、扭转速度控制范围： 1000Nm/2000Nm（0.1°720°/min）
5000Nm 10000Nm（0.1-360°/min）
Reverse speed control range: 1000Nm/2000Nm（0.1°720°/min）
5000Nm 10000Nm（0.1-360°/min）
11、扭转速度控制精度： 优于±1%
Reverse speed control accuracy: Better than ±1%
12、试验机级别： 1级
The level of torsion rig: superior quality
14、外观： 应符合GB/T2611要求
Appearance: meet the GB/T2611 requirements
15、成套性： 符合标准要求
The complete set: meet the standards
16、保护功能： 试验机有过载保护功能
The function of protection: over-protected
17、供电电源： 220V，50Hz
